The origins of regenerated cardato

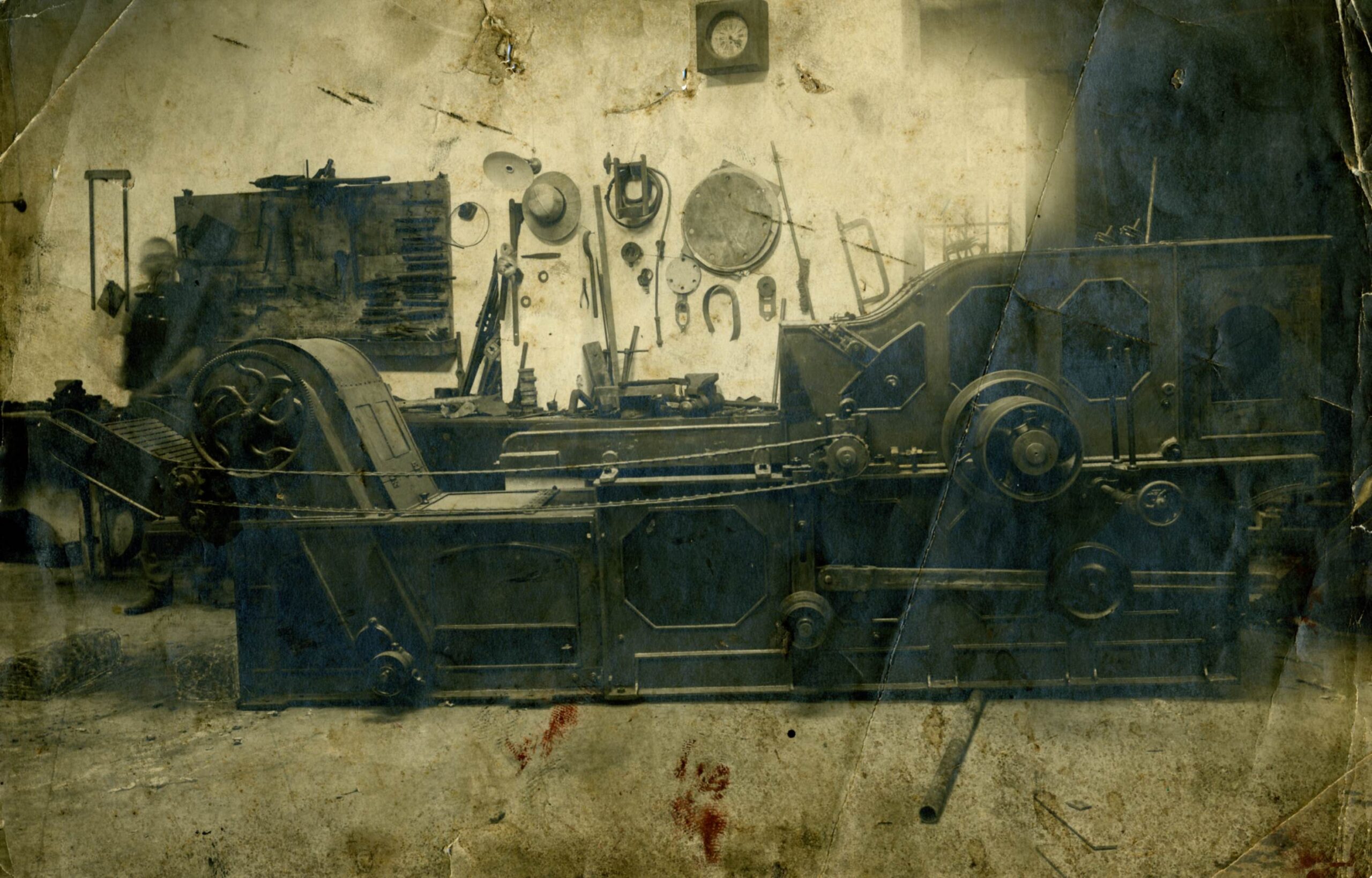

Introduction of regenerated wool and the dry rag shredder

The most important innovation for Prato’s textile production in the last century and a half is undoubtedly the manufacture of fabrics using regenerated wool. This type of processing actually dates back to the mid-19th century and is based on the introduction of an invention destined to change, within just a few years, the entire production of the Prato area: the dry rag shredder.

This machine was in fact developed in 1813 by the Englishman Benjamin Law, following the idea of reusing waste from wool spinning and weaving. According to Alessandro Rossi, these machines spread in Italy after 1855, when the first models were exhibited at the Paris Exposition. However, it is documented that this device had already quietly arrived a few years earlier right in Prato.

The wet rag shredder and the Prato innovation

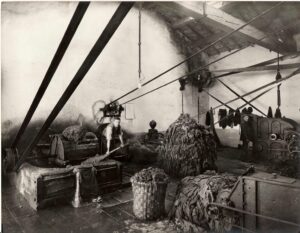

However, the true Prato innovation, which has survived to the present day, was the invention of the wet rag shredder, this time powered by a hydraulic engine—essentially an elliptical tank into which the rags were placed in water to soften the fibers, and then shredded by toothed drums. It was developed by adapting the Dutch vat process used in paper mills, which for centuries had been recycling old rags, though of vegetable origin, unlike the Prato process that instead employed wool.

This innovation was introduced in Prato in 1854 by Francesco Pisani and Carlo Valdrè in the Torricella building, this time in great secrecy. Unfortunately for the two entrepreneurs, the historic Torricella complex was made up of several buildings, all equipped with waterwheels connected to the same millrace, creating close proximity among the various operations housed there. For this reason, Pisani had vainly tried to move his secret machine away from prying eyes, attempting unsuccessfully to rent from Ranieri Buonamici the abandoned Gabolana ironworks in the Bisenzio Valley, claiming—evasively but not too far from the truth—that he wanted to set up a paper mill there.

However, being unable to achieve this, he was forced to remain at the Torricella, part of which was rented to a certain T.C. (as the historian Bruzzi mysteriously wrote in 1920), who ran a spinning operation there. This obscure entrepreneur, eager to steal the precious secret, took advantage of the proximity and the shared hydraulic system: one night, he entered the millrace and slipped into Pisani’s factory, where he was able to observe the innovation undisturbed. Needless to say, before long he too had acquired a similar mechanism, which then gradually spread to other entrepreneurs and subsequently accounted for much of the past success of Prato’s textile industry.

The spread of rag shredding and the birth of the Prato industry

The identity of the mysterious entrepreneur is easily deduced from an analysis of the businessmen active at the time, which shows that it was almost certainly Tobia Cai who, ironically, in 1863, succeeded in renting from Buonamici the very ironworks previously sought by Pisani, where he installed a wet rag shredder, later becoming one of the richest and most famous entrepreneurs of the era. By then, however, the secret had spread throughout Prato, and already the following year there were eighteen shredding plants in operation, which would soon multiply further and change the productive destiny of the entire city.

It is also interesting to note how this activity came to constitute, especially in the upper Bisenzio Valley, a sort of complement to milling. In fact, there had already been some overlap between milling and the textile world, with fulling mills often located alongside millstones, even if the roles of miller and fuller remained distinct while sharing the same hydraulic system. Although the millers were not the first to install such plants, they were certainly among the first to come into close contact with them—sometimes even in conflict—since hydraulic systems were often multipurpose, placing them side by side with these new machines and frequently forcing them to compete for the use of precious hydraulic energy.

The millers who seized this opportunity thus became the first small textile entrepreneurs, as happened with Cecconi and Turchi in Terrigoli, Biagioli in Cerbaia, Bellandi in Fabbro, and the Bardazzi family in Vaiano and Camino, eventually leading to fully integrated fabric production processes, such as Meucci in Vernio. This marked the definitive transition from one sector to another—from being a miller to becoming a full-fledged textile entrepreneur.

The evolution of regenerated wool

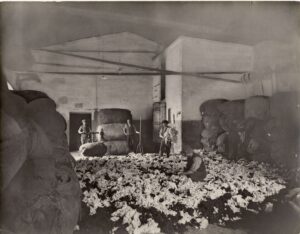

The new fiber thus obtained took the name of regenerated wool. Used in blends with new wool, with other fibers, or even alone, it would then undergo the entire textile production process to once again become fabric. If at first only cuttings and textile waste were used, very soon old garments also began to be employed, and in a short time Prato transformed into the world capital of rags—as Malaparte himself emphasized in *Maledetti Toscani*, when he declared that “all of Italy’s and Europe’s history ends up in Prato: all in Prato, in rags”.

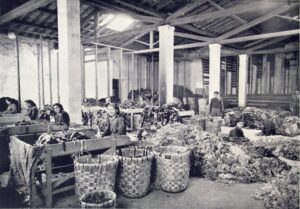

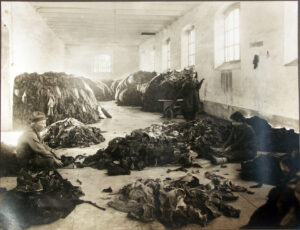

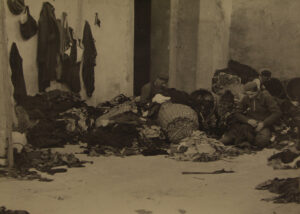

The processing of rags had by then become the work of a whole host of small artisans, though there were also entrepreneurs who approached the business on a larger scale, making this trade and its initial processing their main activity. One of the earliest and most significant examples was undoubtedly Michelangelo Calamai who, in 1878, set up a large factory for this very purpose right near Prato’s railway station, built on the Maria Antonia railway line.

The carbonization of fibers and chemical treatment

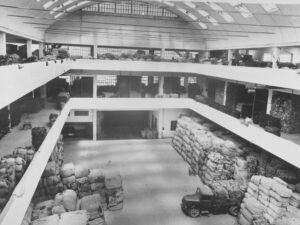

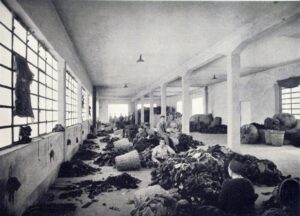

Subsequently, the main wool mills carried out this activity internally, although throughout the 20th century there were still entrepreneurs who continued to specialize exclusively in it, such as Sanesi Sanesino and Enrico Befani. Thus, as the use of old rags became increasingly widespread in the regenerated wool industry, the need arose to industrially remove the vegetable fibers that were often mixed into used garments. To address this problem, around 1850, a chemical process for the carbonization of unwanted fibers was developed in England; however, it would take some time before it was widely adopted.
